LEGEND

A—1

⁄

-in. (32) diameter knockout for

⁄

-in. (16) ODM liquid line connection

B—1

⁄

-in. (44.5) diameter knockout for suction line connections of 1

⁄

in. (28.6)

(38AE012), 1

⁄

in. (35) (38AE014,016), 1

⁄

in. (41) (38AKS024)

C—

⁄

-in. (22.2) diameter knockout for control power

D—2-in. (50.8) diameter knockout for unit power

NOTES:

1. SERVICE AREAS — Allow 3 ft (914) on both sides

and 2 ft (610) on both ends of unit for servicing.

2. Dimensions in ( ) are in millimeters.

Certiﬁed dimension drawings are available on request.

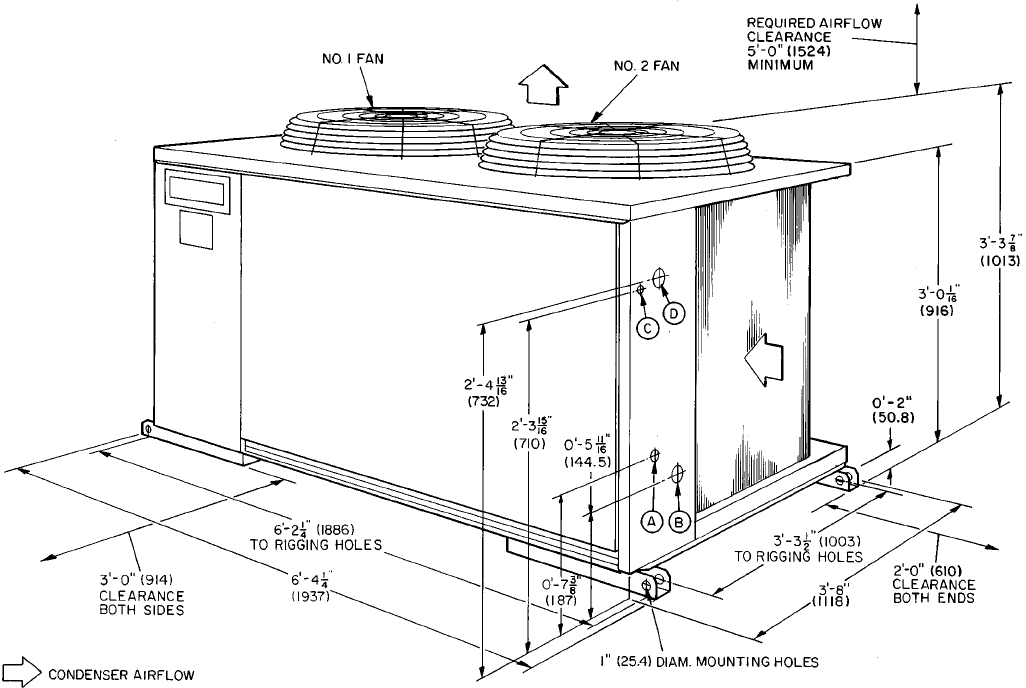

Fig. 1 — Dimensions (ft-in.)
