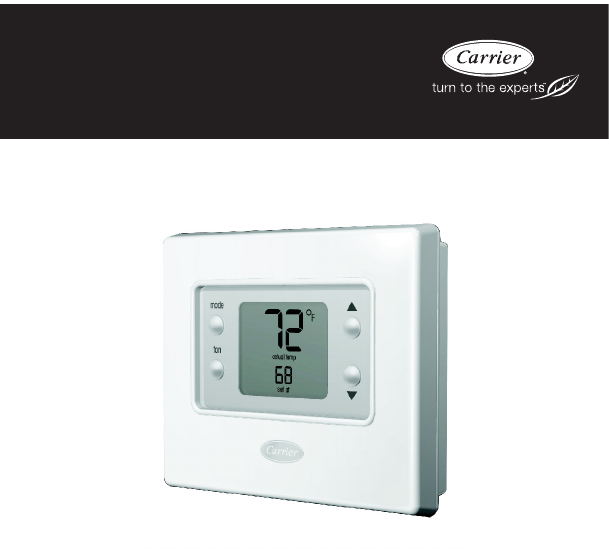

T C --- N H P, T C --- N A CComfort™ SeriesNon---Programmable ThermostatOwner’s Manual

8OPERATING THE THERMOSTATSetting the temperatures for heating and coolingYour thermostat is installed with the heating set at 68° F and the cooling se

9OPERATING THE THERMOSTATUsing the fanWhen the fan is on, it helps distribute air throughout your home for a more eventemperature in all spaces. You c

10OPERATING THE THERMOSTATUsing emergency heat (heat pump systems only)Emergency heat is useful when the automatic auxiliary heat system can’t keep up

11OPERATING THE THERMOSTATInstalling or replacing the batteriesYou can install batteries in your thermostat so that if the power goes out, the display

12OPERATING THE THERMOSTAT2. Press it down. This will disconnect the thermostat from thetop of the wall plate.3. Remove the thermostat from the wall b

13OPERATING THE THERMOSTAT9. With the bottom of the thermostat attached to the bottomof the wall bracket, bring the thermostat back to thewall. Line u

14OPERATING THE THERMOSTATUsing the thermostat to turn the heating and cooling system offTo use the thermostat to turn the heating and cooling systemo

15ADVANCED OPTIONSAdvanced options display codes chartYou can customize a few features of your thermostat. This chart shows whichfeatures you can chan

16ADVANCED OPTIONSChanging from Fahrenheit to CelsiusYour thermostat is preset to display the temperature in degreesFahrenheit. You can change this to

17ADVANCED OPTIONSTurning on the continuous backlightingThe thermostat display lights up for a few seconds after you press any button. Thisis backligh

18ADVANCED OPTIONSKeypad lockoutThe keypad lockout feature lets you “lock” the thermostat so nobody can changethe temperature – o r make any other cha

19ADVANCED OPTIONSUnlocking the keypadHere’s how to temporarily unlock the keypad.1. Press and hold the up and down buttons on the rightsimultaneously

20WHATIF...The battery icon is displayedThe battery icon appears on the display only when the battery starts to lose power.Replace it when one--third

21WHATIF...ThereisapoweroutageIf you lose electricity and have batteries installed, the thermostat will continue todisplay the indoor temperature beca

22COMMON TERMS AND WHERE TO FIND THEMAuto changeover page 14...This feature automatically switches your system

23THERMOSTAT LIMITED WARRANTYCARRIER CORPORATIONLimited Warranty for ThermostatsFOR WARRANTY SERVICE OR REPAIR:Contact the installer or a Carrier deal

24THERMOSTAT LIMITED WARRANTYOWNER--OCCUPIED, RESIDENTIAL APPLICATIONSThis warranty is to the original purchasing owner and is transferable only to th

25THERMOSTAT LIMITED WARRANTYWARRANTY CONDITIONS:1. To obtain the longer warranty periods as shown in the table under original owner, forthe original

26THERMOSTAT LIMITED WARRANTYPROVINCES DO NOT ALLOW LIMITATIONS O N HOW LONG AN IMPLIEDWARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT AP PLY TOYOU.

27NOTES PAGE

1YOU WILL LOVE THIS THERMOSTAT.This Comfortt non --programmable thermostat is an easy to use model that providesthe most sought--after features for ke

28NOTES PAGE

Copyright 2012 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231Manufacturer reserves the right to change, at any time, specifications and d

2TABLE OF CONTENTSBUTTON IDENTIFICATION 4...ON--SCREEN INDICATORS 6...OPERATING THE TH

3TABLE OF CONTENTSWHATIF...The battery icon is displayed 20...“Aux heat on” is displayed (heat pump systems only) 20.

4BUTTON IDENTIFICATIONbacd

5BUTTON IDENTIFICATIONa. FAN Selects whether the fan operates continuously (on) or only whenneeded for heating or cooling (auto)b. MODE Selects whethe

6ON--SCREEN INDICATORSactual tempoEmheatauxheatonfanautofanonFCcool on 2set at42315768910

7ON--SCREEN INDICATORS1. Fan mode – on or auto2. System is in auxiliary (supplemental) mode3. Current temperature4. Thermostat mode is either off or u
