Carrier 38AE User Manual

HEATING & COOLING38AE 012,014,016 Air-Cooled Condensing UnitsInstallation, Start-Up and Service Instructions50 and 60 HzINSTALLATIONStep 1 — Compl

TROUBLESHOOTING (cont)PROBLEM SOLUTIONCOMPRESSOR RUNNING BUT COOLING INSUFFICIENT Suction Pressure Low1. Refrigerant charge low2. Head pressure low3

fCopyright 1992 Carrier CorporationManufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and

ENGLISHTable 1 — Physical Datrf^UNIT 38AE 012 014016OPERATING WEIGHT (lb)732 779789REFRIGERANT (lb)‘ 22COMPRESSORModel No.Oil (pt)Crankcase Heater Wat

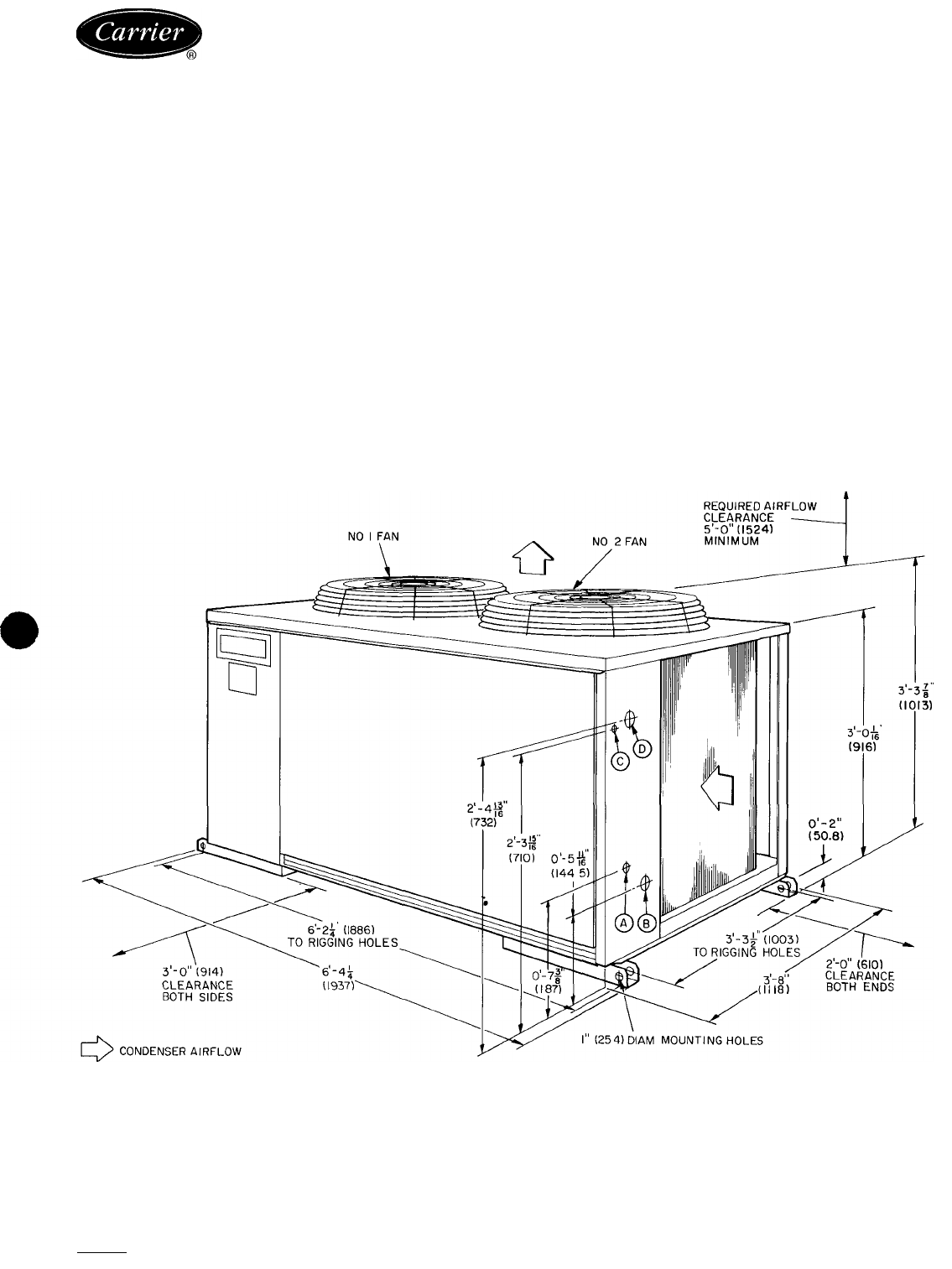

Table 2 — Weight DistributionrUNIT38AEWEIGHT - lb (kg)OperWtSupport PointA B CD012732 (333) 142 (65)138 (63) 225 (102)227(103)014779 (354)143 (65)140

PROVIDE SAFETY RELIEF — A fusible plug is located on the compressor crankcase (Fig. 4). Do not cap this plug. If local code requires additi

(3 Ph/60 Hz)Table 4 - Electrical DataUNIT38AEUNITCOMPR FAN MOTORS (Single Phase)ModelVoltsMCAICFMOCP(Fuse)RLALRATotalFansFLA (ea) Fan No.kWNameplateSu

Preliminary Charge — Refer to Carrier Standard Service Techniques Manual, Chapter 1, Section 1-8. By the liquid charging method and charging by w

Head Pressure Control by means of/an cycling is a standard feature of 38AE012-016 units. The no. 2 fan cycles in response to changes in liquid press

Cleaning Coils — The coils can be cleaned with a vacuum cleaner, washed out with water, blown out with compressed air, or brushed (do not use wire b

TROUBLESHOOTINGPROBLEM SOLUTIONCOMPRESSOR DOES NOT RUN Contactor Open1. Power off1. Restore power2. Fuses blown in field power circuit 2 After finding
