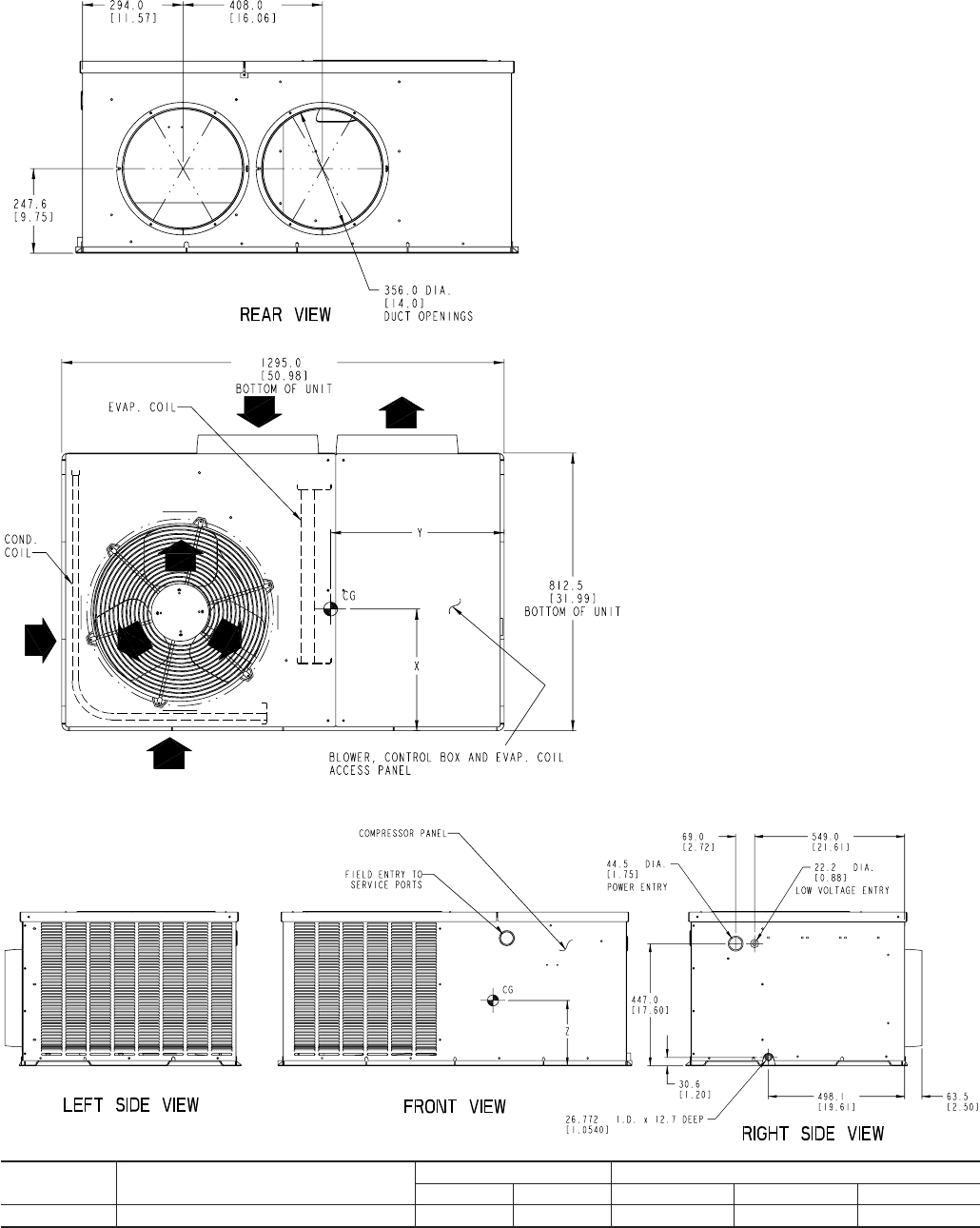

Fig. 2—Unit Base Dimensions—50ZH030

UNIT ELECTRICAL CHARACTERISTICS

UNIT WEIGHT CENTER OF GRAVITY IN. (MM)

lb kg X Y Z

50ZH030 208/230–3–60 254 116 14.0 (356) 19.0 (483) 12.0 (305)

C00156

REQUIRED CLEARANCE FOR OPERATION AND SERVICING

INCHES [mm]

CONDENSER . COIL ACCESS SIDE..............................................30.00 [762.0]

POWER ENTRY SIDE....................................................................30.00 [762.0]

(EXCEPT FOR NEC REQUIREMENTS)

UNIT TOP.......................................................................................48.00 [1219.2]

SIDE OPPOSITE DUCTS ..............................................................30.00 [762.0]

LEGEND

NEC – National Electrical Code

NOTES:

1. Clearances must be maintained to prevent recirculation of air from outdoor-

fan discharge, with the exception of the condenser coil (36.00 in [914.0 mm]. A

removable fence or barricade requires no clearance.

2. Dimensions are in inches. Dimensions in [ ] are in millimeters.

REQUIRED CLEARANCE TO COMBUSTIBLE MATL.

INCHES [mm]

TOP OF UNIT.........................................................................................0

DUCT SIDE OF UNIT.............................................................................0

SIDE OPPOSITE DUCTS ......................................................................0

BOTTOM OF UNIT .................................................................................0

NEC. REQUIRED CLEARANCES.

INCHES [mm]

BETWEEN UNITS, POWER ENTRY SIDE ....................................42.00 [1066.8]

UNIT AND UNGROUNDED SURFACES, POWER ENTRY SIDE .36.00 [914.0]

UNIT AND BLOCK OR CONCRETE WALLS AND OTHER

GROUNDED SURFACES, POWER ENTRY SIDE.........................42.00 [1066.8]
