1" MIN.

2" MIN.

A88130

♦These embossments are located on Large Cabinet Units (048-060 size only.)

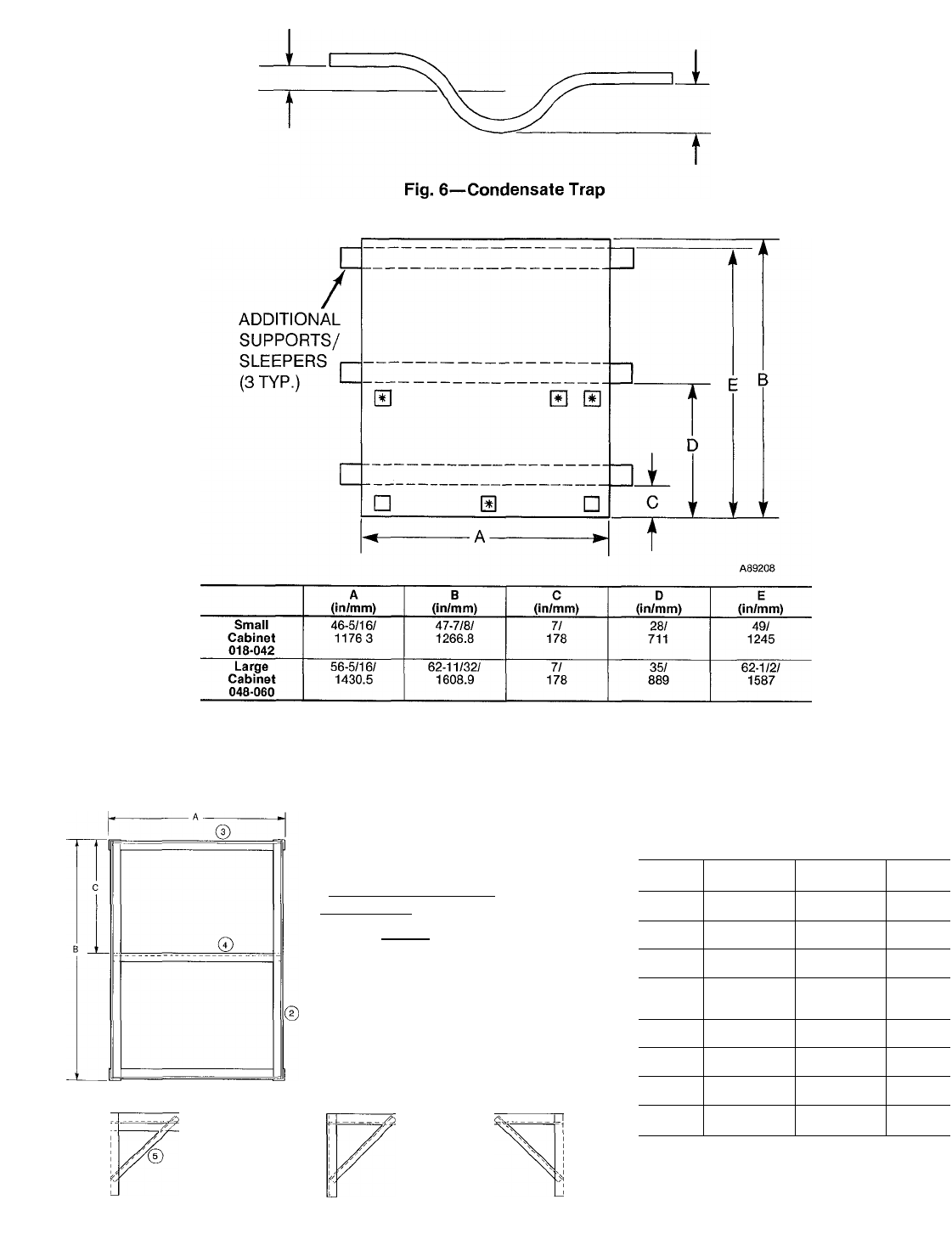

Fig. 7—Additional Support/Sleeper

Location

©I" --------------

®' I ~ I I

^ _j Ui_i/2" (38mm)

®^" — I

0 —ZZT—j

—I [—1-1/2" (38mm)

MATERIAL;

ANGLE IRON - 1-1/4" (31 8mm) TO 1-1/2" (38mm) COMM’L STD

WELD FRAME TOGETHER

PAINT WITH ZINC-RICH PAINT (RUSTPROOF)

Table 1—Mounting Frame

Dimensions

Item No.

Large Cabinet

Length

Small Cabinet

Length

Quantity

A 50 in

(1269mm)

40-3/8 in

(1024mm)

—

B 60-1/2 in

(1535mm)

47 in

(1193mm)

—

C 30-1/4 in

(766mm)

23-1/2 in

(597mm)

“

12 in (305mm)

24 in (610mm)

12 in (305mm)

24 in (610mm)

2 60 in

(1523mm)

46-1/2 in

(1181mm)

3 49-1/2 in

(1257mm)

39-7/8 in

(1012mm)

4 49-1/2 in

(1257mm)

39-7/8 in

(1012mm)

16 in

(406mm)

16 in

(406mm)

Fig. 8—Mounting Frame

1 2 3 4 5 6 7 8 9 10 ... 15 16

Single-Package Heat Pumps 1
1" MIN 5
2" MIN 5
ODT — Outdoor Thermostat 8
ODT — Outdoor Thermostat 8
HR — Heater Relay 8
A CAUTION 10
A WARNING 10
Checking Start Thermistor 14
Tab 15a 15a 16
