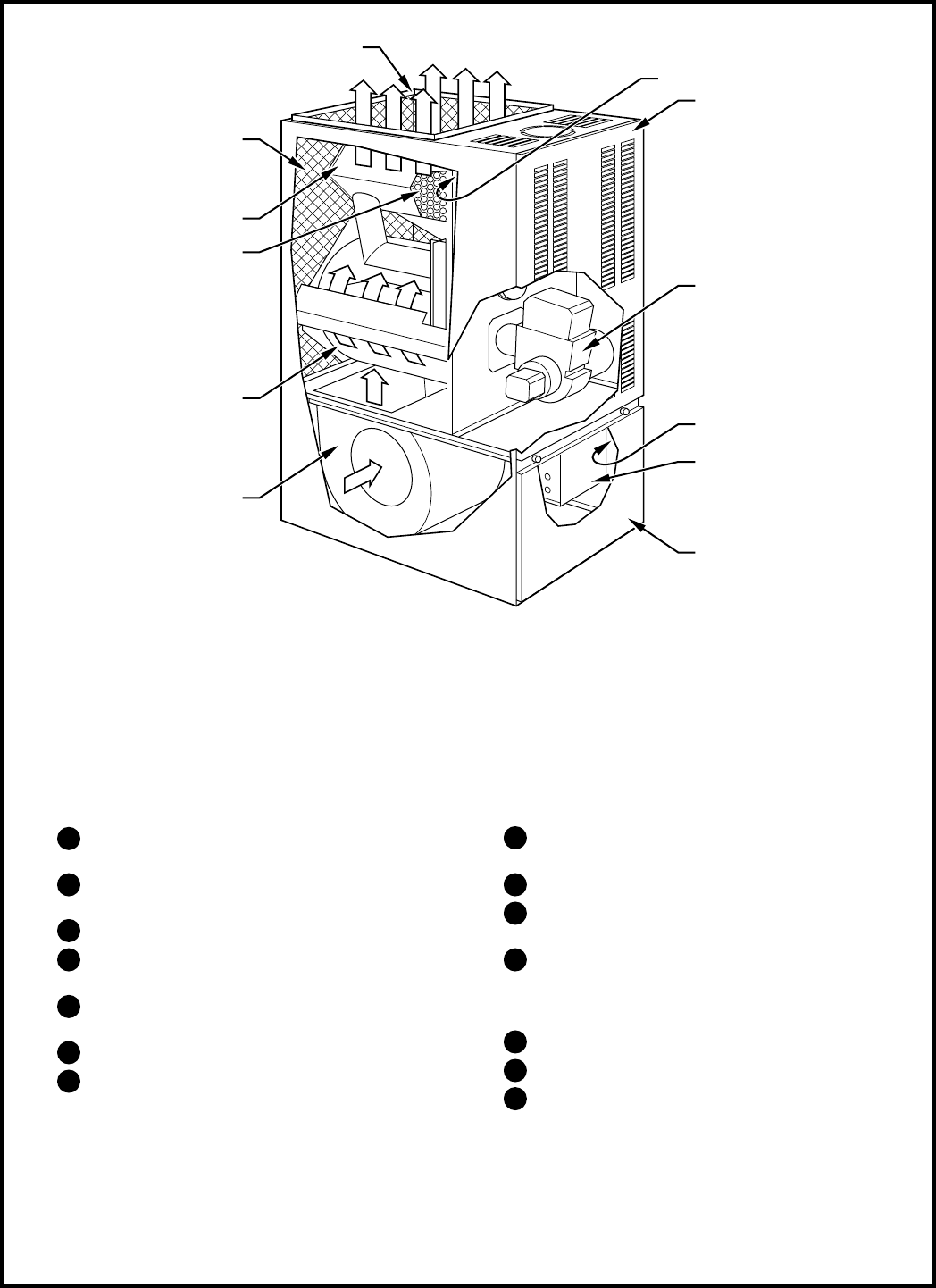

Heavy-duty blower circulates air across the heat

exchanger to transfer heat into the home.

Stainless steel combustion chamber/primary heat

exchanger.

Unique silencer system reduces combustion noise.

Heat exchanger designed and shaped to efficiently

transfer heat from furnace into the home.

Fully insulated internal walls to minimize heat

loss, and reduce sound.

Supply-air plenum.

High limit control to prevent overtemperature

operation.

Reversible door provides easy access to burner

and controls.

High-performance oil burner.

Manual switch to allow user control of constant

low-speed blower operation.

Adjustable electronic fan timer control (inside)

has low-voltage electrical terminal strip for easy

connection of thermostat, cooling control,

electronic air cleaner, and humidifier.

Access door to blower.

Air filter (field supplied).

Return-air plenum.

Left side, right side, or bottom.
