589

552

499

363

402

441

132

170

222

8.5

7 - ELECTRICAL CONNECTION

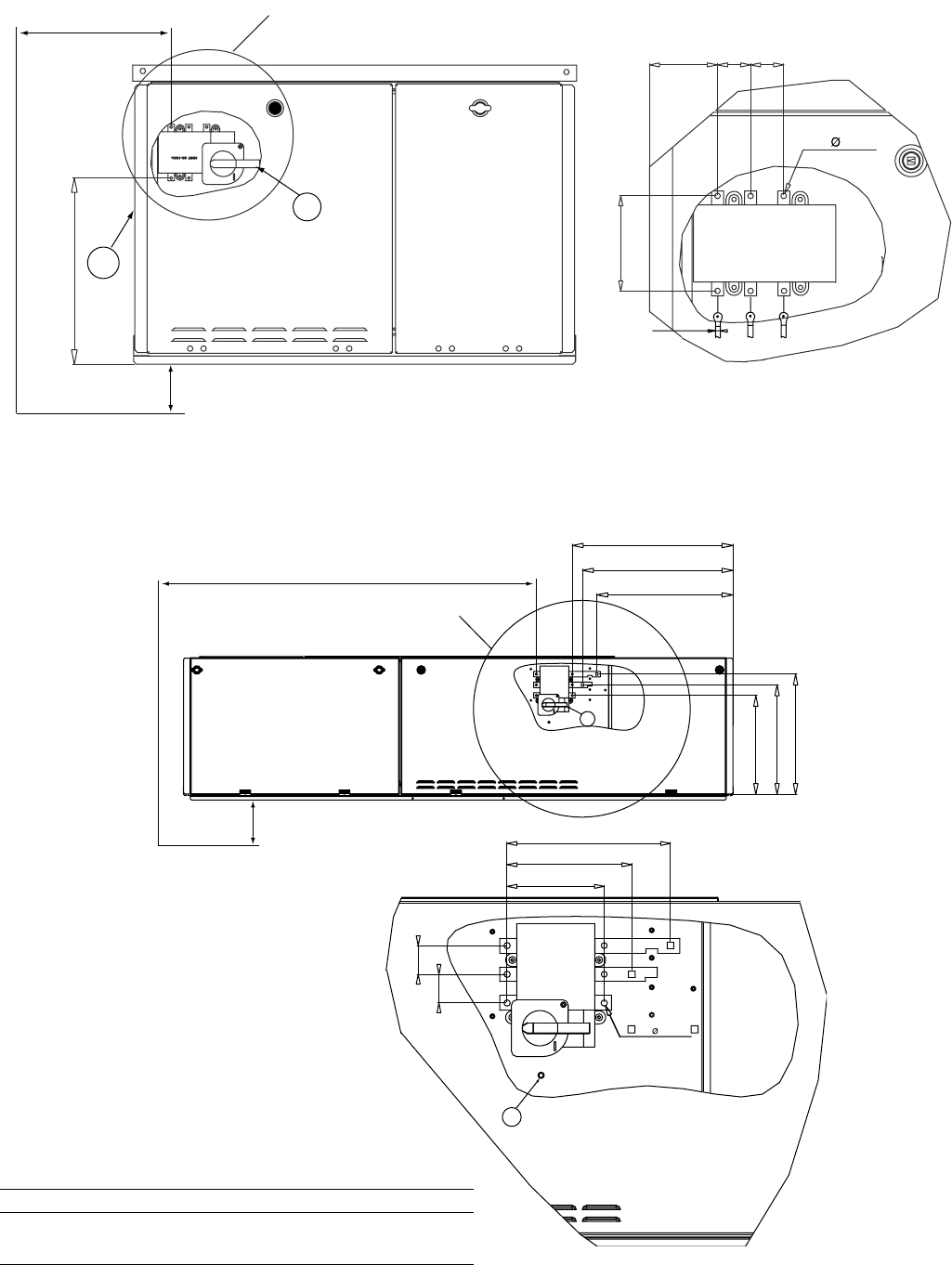

7.1 - Control box

30RA 040-080

30RA 090-160

Legend

1 Main disconnect switch

PE Earth connection

S Power supply cable section (see table “Recommended wire sections”).

X Disconnect switch position referred to the unit side

Y Control box position referred to the unit base

X (mm) Y (mm)

30RA 040 - 080 190 762

30RA 090 - 160 1415 762

30RA 200 - 240 1161 1107

347

333368

5.5
