1. Manual RUN/STOP Switch

2 Manual Glow/Crank Switch (If Equipped)

3. Warning Buzzer

4 Summer/Winter Switch (EWHS Only)

5 Fuel Heater Relay (FHR -- Option)

6. Main Fuse (F1, 80 amp)

7. Relay/Fuse Board (See Table 1-9 &

Figure 1-5)

8. Motor Overload Relay (MOL)

9. Standby Motor Contactor (MC)

(Located in plug box on 950)

10.Microprocessor Module

Note: See Figure 2-1 for Cab Command

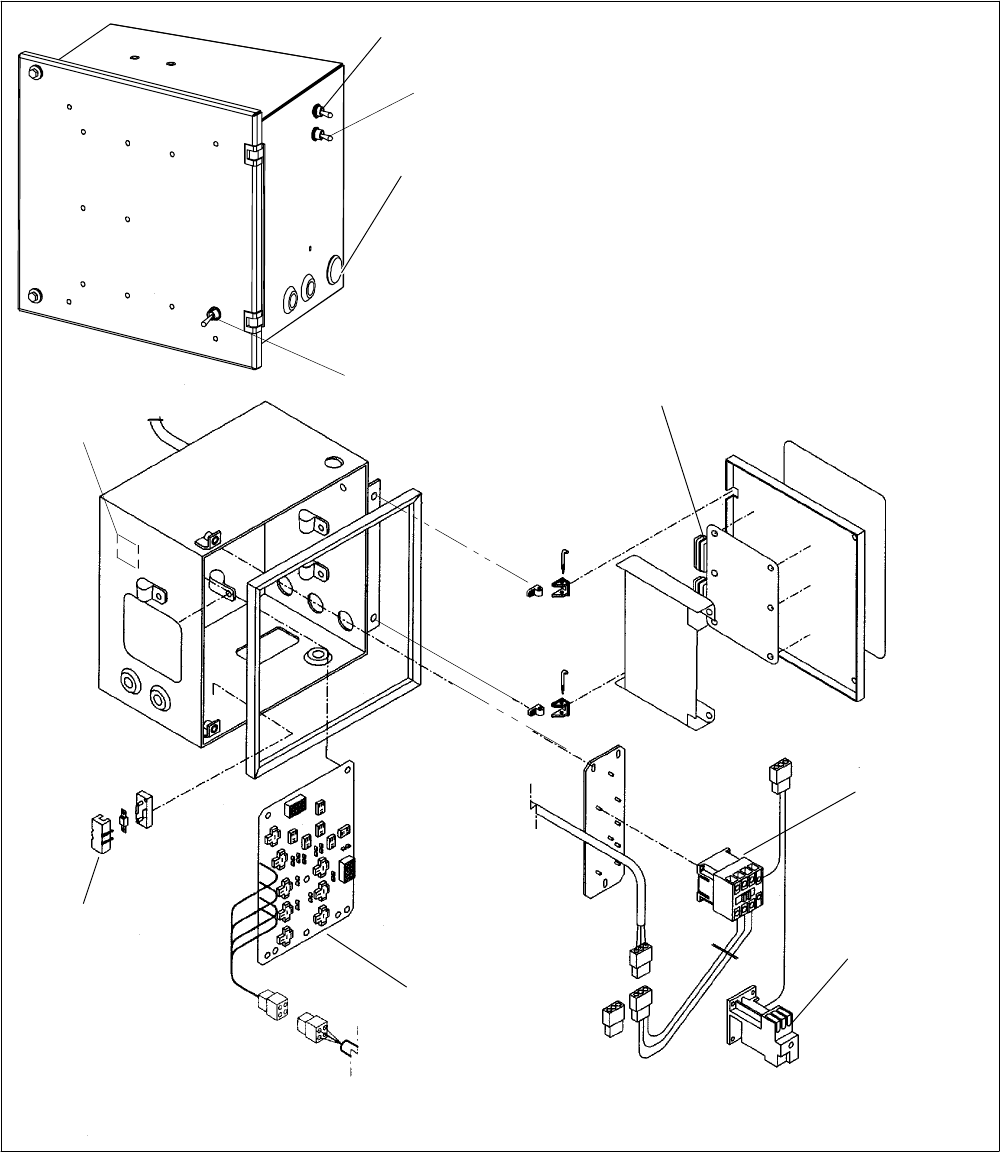

Figure 1-4. Electrical Box
